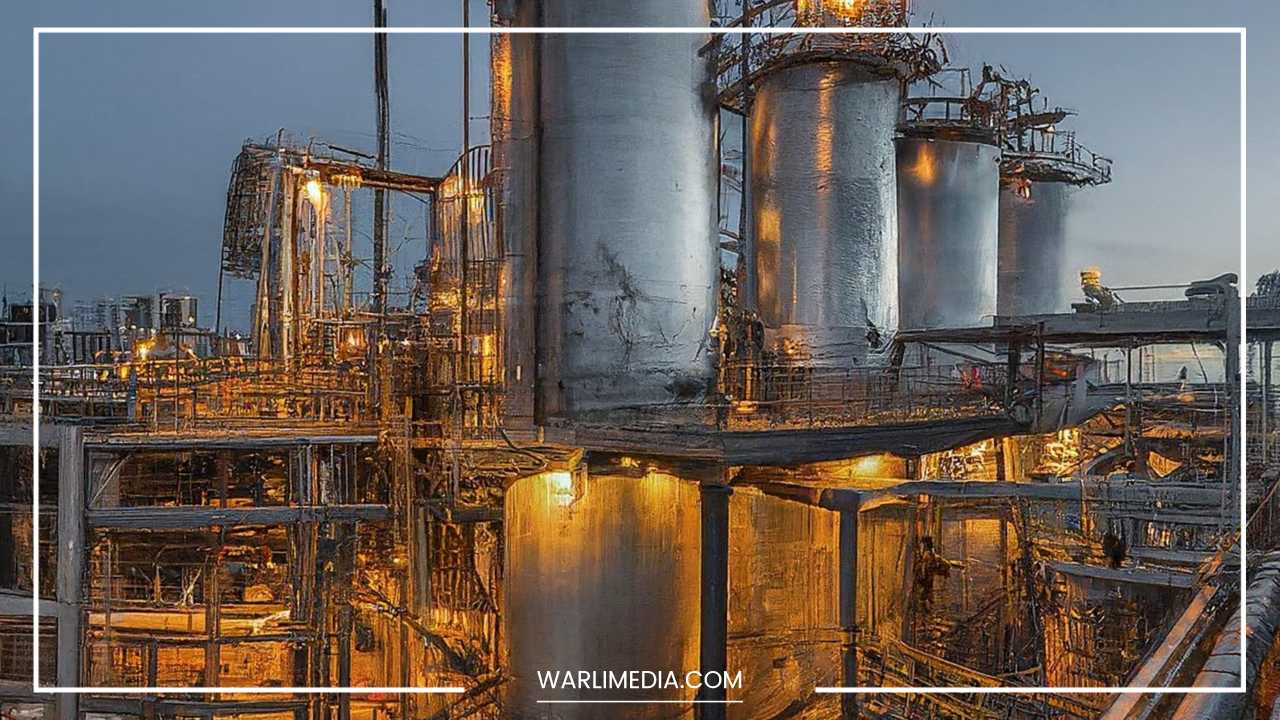

Sulphuric Acid Dilution Plant

We are one of the respected names engaged in the process of supplying quality Sulphuric Acid Dilution Plant at nominal rates.

We are connected with well-known transport providers to make sure the distribution of deliveries is done out without a problem and on time.

Sulphuric Acid Dilution Plant

Product Description

The unit consists of a Dilution Chamber, followed by a Heat Exchanger.

Dilution Chamber is used for diluting concentrated Sulphuric acid to the desired concentration and the Heat Exchanger is used for bringing down the temperature of dilute acid to desired temperature (When the concentrated acid mixes with water, large amounts of heat are released).

The Heat Exchanger is of Shell and Tube type to dilute the acid.

The acid should be added slowly to cold water to limit the buildup of heat. If water is added to the concentrated acid, enough heat can be released at once to boil the water and spatter the acid.

Sulfuric acid reacts with water to form hydrates with distinct properties.

The System Consists Of

  • Dilution Chamber with accessories -Glass.
  • Heat Exchanger – Glass.
  • Glass Buffer as Receiver & Circulation of dilute acid (Optional).
  • Dilute Sulphuric acid Circulation Pump (Optional).
  • Glass Pipelines, Valves, & Fittings and Thermo well.
  • Non – Return Valve for Acid & Water Inlet.
  • Expansion Bellows In PTFE for all Nozzles of Glass Components.

Outstanding Features

Continuous method of producing the broad range of sulphuric acid grades (Dilute sulfuric acid from 98% to 10% ~ 15%)

The all Glass & PTFE construction of plant eliminates the material corrosion and allows this profitable operation to take place safely.

The unit can be offered vertical or horizontal as per site layout.

Compact design. The equipment is simple and easy to operate.

Control outlet acid temperature 6. Design temperature: 160 Deg C
