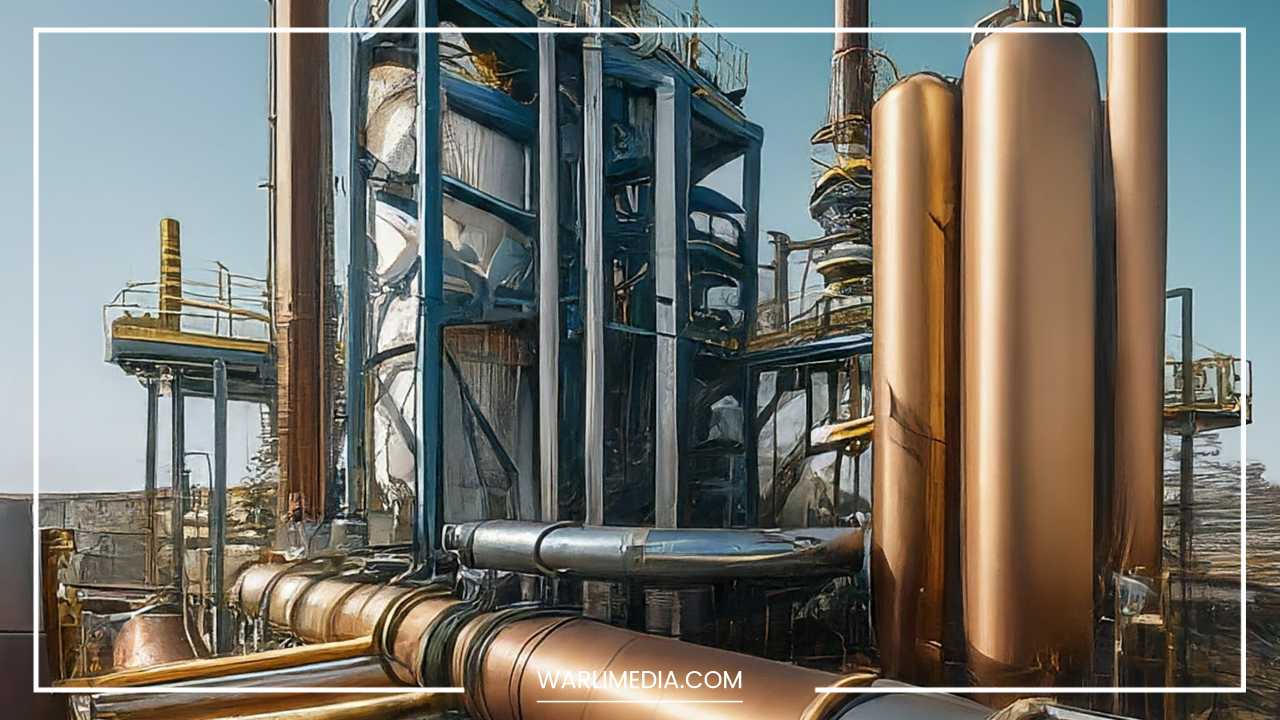

We are a prominent entity, engaged in supplying a comprehensive range of Industrial Bromine Recovery Plant. It is perfectly designed and manufactured at well-equipped unit with the use of modern machines and sound technology.
In order to meet the various requirements of our clients, we offer this product with dimensional accuracy, high stability and durability. Our clients can avail this quality tested Industrial Bromine Recovery Plant from us at market leading prices.
Bromine Recovery Plant Key Features
- Precisely designed
- Excellent performance
- High reliability
Process Description
The feed is acidified with 30% HCI acid and acidified feed is fed to the scrubber by pump to Scrub uncondensed chlorine from Vent Condenser and return back to the reaction column.
In some cases the part feed is preheated using effluent from the reaction column prior to the entry of reaction column and part feed is fed to the scrubber to conserve energy. Chlorine and Steam are also fed to the reaction Column.
In the reaction column the feed is reacted with chlorine gas & bromine is liberated Instantly. This liberated bromine is stripped out of the solution by live steam. The bromine and water vapor stream leaves the top of the column and enters the condenser.
Condensate falls into the Phase Separator where it forms two phases, the light aqueous phase (Water) being returned to the Column ,while the heavy phase(Bromine) being feed the purification column. Cooling Water & Chilled Water is used as cooling media in heat exchanger provided at the top of the column to condense water vapor & Bromine.
Purification of the Bromine is achieved by distillation. Heat being introduced into the column through the reboiler. Bromine and Chlorine vapor leave the top of the Column and enter the Condenser.
The Bromine gets condensed in the Condenser and falls back into the column while uncondensed chlorine vapor along with traces of Bromine escapes from the Condenser and enter into the Vent Condenser, where remaining Bromine gets condensed and back to the crude Bromine receiver.
Pure bromine is cooled in a product cooler and goes to Product receivers. Guard condenser is also provided atthe top of the receiver to prevent escape of bromine. Bromine is then collected in glass bottles.
From Industrial Effluents (NaBr/KBr/HBr) From Sea -Bittern. Available up to 600 mm Dia.
Over View Of The System
The system consists of Stripping / Reaction Column – Glass Cooling/Chilling Heat Exchangers Phase Separator – Glass Bromine Purification Column Pure Bromine Condenser -Glass Vent / Guard Condenser – Glass Bromine Reboiler – Glass Bromine Product Cooler – Glass Crude / Pure Bromine Collecting Receiver – Glass
Raw Material Requirement
- Sea- Bittern (Brine)/ NaBr/KBr
- Chlorine Gas
- 30%HCI
Products Specifications
- Bromine Liquid :99.7% (w/w, min)
- Chlorine : 0.3 % (w/w, max)
Main Export Market
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
